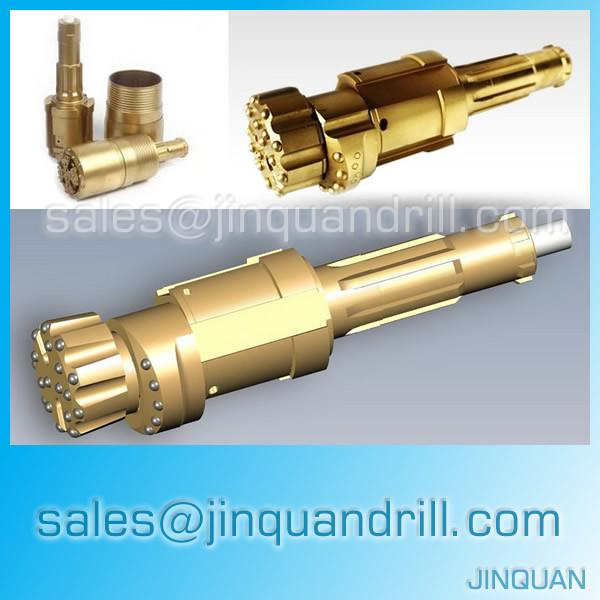

Odex Drilling Tools Odex Bits Overburden DTH Bits

Name: Odex Drilling Tools Odex Bits Overburden DTH Bits
Brand: Jinquan
Price: 500 USD

Place of Origin : China

Brand Name : Jinquan

Certification : ISO9001:2008

Model Number : DHD340A, DHD350R, DHD360, DHD380; Cop32, Cop34, Cop44, Cop54, Cop64, Cop84; Mission 40, Mission 50 , Mission 60, Mission80; SD4, SD5, SD6, SD8; TD40, QL50, QL60, QL80; BR2, BR3.

Other Names : Odex Drilling Systems,Odex DTH Bits,Overburden DTH Bits,Odex140,Odex165

Bit Diameter : 3 inch; 4 inch; 5 inch; 6 inch; 8 inch

Material : Carbon Steel and Tungsten Carbide Buttons

Technology : Heat Treatment

Application : Drilling, Quarrying, DTH Drilling, Water Well Drilling, Oil Drill, Construction, Foundation Drilling

Colour : Gold, Black, Red, Blue, Yellow

MOQ : 1 Piece

Price : $500

Packaging Details : Ply-wooden cases or Iron bundles

Delivery Time : Within 15 days upon receipt of your 30% deposit

Payment Terms : T/T, Western Union, Paypal, L/C At Sight

Supply Ability : 100,000 pcs per month

Contact Now

Odex Drilling Systems:

Under reaming systems are the most economical solutions for casing drilling in normal ground conditions. This is particularly true for shallow holes, as is often the case in water well drilling. We have sizes 4", 5", 6" and 8" ODEX systems available.

The ODEX system utilizes an eccentric under reamer to cut a drilled hole ahead of the bottom of the casing. The casing is then simultaneously advanced by a percussive force applied to either the top or bottom of the casing. As the hole is advanced, the drill cuttings are normally removed by air and travel up the inside of the casing in the annular space between the casing ID and the drill rod OD. The ODEX method is highly effective in overburden soils where boulders or gravel layers are present, or when layers of rock must be penetrated. This method also subjects surficial and localized soils to some vibration.

Currently Odex is available from 3" to 8" DTH hammers.

Odex 90 for 3" hammers;

Odex 115 for 3" and 4" hammers;

Odex 140 for 4" and 5" hammers;

Odex 165 for 5" and 6" hammers;

Odex 190 for 6" and 8" hammers;

Odex 240 for 8" hammers.
